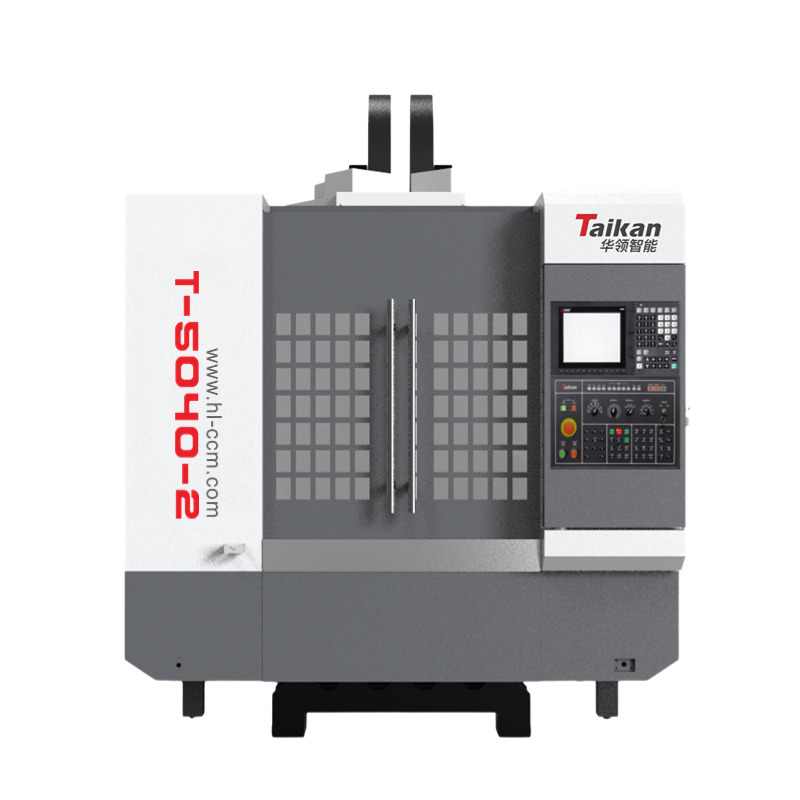

Characteristic of T-5040-2 Multi-Head Vertical Machining Center
|
Dual-Spindle Design for Enhanced Efficiency Standard 21-Tool Slant Disc Tool Magazine |
 |
Application of T-5040-2 Multi-Head Vertical Machining Center
Ideal for machining small plate parts, disc-shaped parts, and shell components in general industries.
3C Industry: Suitable for roughing and finishing processes for mobile phone frames, SIM card trays, hinges, tablet casings, and 5G-related parts such as plates, shells, and box components.
Precision Industries: Suitable for the roughing and finishing of plate, shell, and box components in industries such as instruments, small molds, and medical devices.
Specifications of T-5040-2 Multi-Head Vertical Machining Center
|
name |
project |
Parameters |
|
workbench |
Table size (mm) |
1200*400 |
|
Distance from table to spindle nose (mm) |
180~500 |
|
|
Maximum load-bearing weight (Kg) |
||
|
journey |
X-direction travel (mm) |
500 |
|
Travel in Y direction (mm) |
400 |
|
|
Ztravel (mm) |
320 |
|
|
Spindle |
Spindle power (Kw) |
3.7/5.5 |
|
Spindle maximum speed (rpm) |
20000 |
|
|
Spindle diameter (mm) |
φ100 |
|
|
Spindle tool change method |
Pneumatic tool changer |
|
|
Shank form |
BT30 |
|
|
Feed rate |
Maximum dry run feed speed (m/min) |
36 |
|
Maximum cutting feed rate (m/min) |
30 |
|
|
Machine tool accuracy |
Positioning accuracy: X/Y/Z (mm) |
0.005 |
|
Repeated positioning accuracy: X/Y/Z (mm) |
0.004 |
|
|
Tool magazine |
Tool magazine capacity |
21T*2 |
|
Tool magazine form |
Inclined disc knife magazine |
|
|
power source |
Air pressure (Mpa) |
≥0.6 |
|
Electricity demand (Kw) |
23 |
|
|
Other parameters |
Dimensions (front and rear * |
|
|
Weight (Approx. weight: Kg) |
5000 |
|
|
Whether to configure network |
Have |
|
|
Whether to configure the tool setter |
Have |
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
