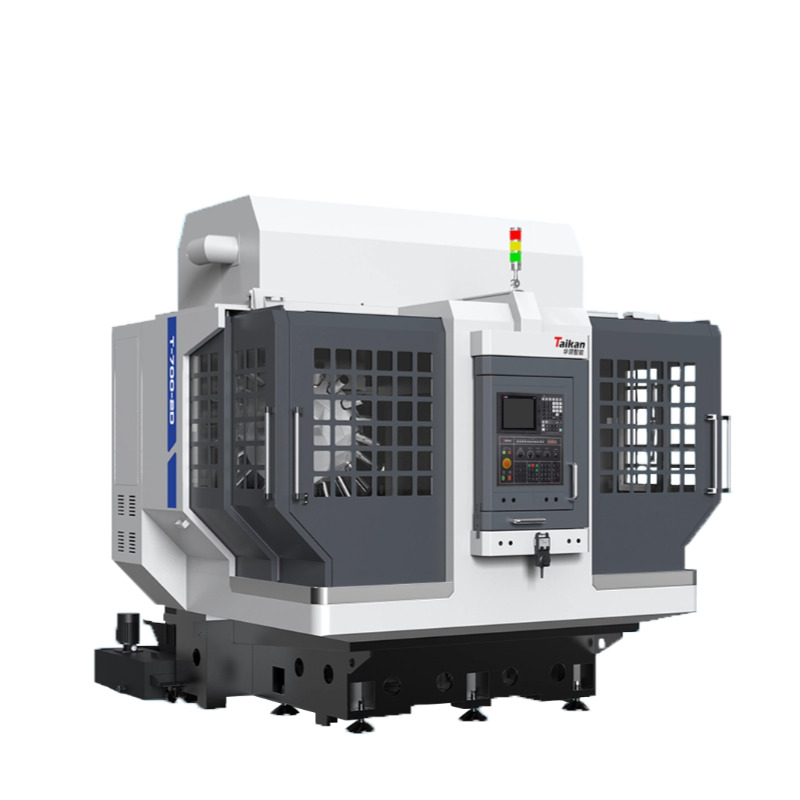

Characteristic of T-700-2D Multi-Worktable High-Speed Machining Center
|
High-Performance Mitsubishi CNC System Robust Cast Iron Bed and Beam High-Speed Cutting Dual Mechanical Spindles |
 |
Application of T-700-2D Multi-Worktable High-Speed Machining Center
The T-700-2D is suitable for the mass production of box components, battery end plates, and other similar parts. It is ideal for batch production in the new energy, 5G, LED frame, and 3C industries, as well as for hardware and automotive component manufacturing.
Specifications of T-700-2D Multi-Worktable High-Speed Machining Center
|
name |
project |
Parameters |
|
workbench |
Table size (mm) |
400*700 |
|
Distance from table to spindle nose (mm) |
180~500 |
|
|
Maximum load-bearing weight (Kg) |
||
|
journey |
X-direction travel (mm) |
400 |
|
Travel in Y direction (mm) |
700 |
|
|
Z travel (mm) |
320 |
|
|
Spindle |
Spindle power (Kw) |
3.7/5.5 |
|
Spindle maximum speed (rpm) |
20000 |
|
|
Spindle diameter (mm) |
φ100 |
|
|
Spindle tool change method |
Pneumatic tool changer |
|
|
Shank form |
BT30 |
|
|
Feed rate |
Maximum dry run feed speed (m/min) |
36 |
|
Maximum cutting feed rate (m/min) |
20 |
|
|
Machine tool accuracy |
Positioning accuracy: X/Y/Z (mm) |
0.005 |
|
Repeated positioning accuracy: X/Y/Z (mm) |
0.004 |
|
|
Tool magazine |
Tool magazine capacity |
21T*2 |
|
Tool magazine form |
Inclined disc knife magazine |
|
|
power source |
Air pressure (Mpa) |
≥0.6 |
|
Electricity demand (Kw) |
24 |
|
|
Other parameters |
Dimensions (front and rear * |
|
|
Weight (Approx. weight: Kg) |
5500 |
|
|
Whether to configure network |
Have |
|
|
Whether to configure the tool setter |
Have |
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
