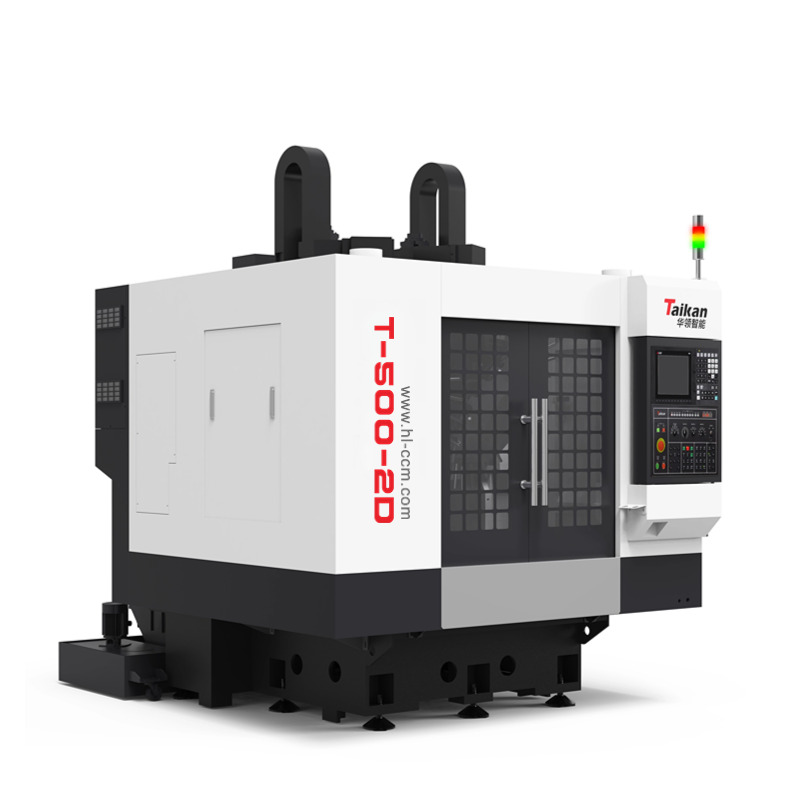

Characteristic of T-500-2D Multi-Worktable High-Speed Machining Center
|
High-Stability, High-Performance CNC System Heavy-Duty Marble Bed and High-Rigidity Cast Beam Dual High-Torque Spindles |
 |
Application of T-500-2D Multi-Worktable High-Speed Machining Center
The T-500-2D is ideal for the automatic, continuous machining of complex parts such as medium and small-sized box components, plates, discs, valves, and shells in a single clamping. It is widely used in industries such as precision parts, 5G products, hardware, automotive components, medical devices, and fields like 3C (computer, communication, and consumer electronics) and new energy.
Specifications of T-500-2D Multi-Worktable High-Speed Machining Center
|
name |
project |
Parameters |
|
workbench |
Table size (mm) |
620*400 |
|
Distance from table to spindle nose (mm) |
180~500 |
|
|
Maximum load-bearing weight (Kg) |
||
|
journey |
X-direction travel (mm) |
400 |
|
Travel in Y direction (mm) |
500 |
|
|
Z travel (mm) |
320 |
|
|
Spindle |
Spindle power (Kw) |
3.7/5.5 |
|
Spindle maximum speed (rpm) |
20000 |
|
|
Spindle diameter (mm) |
φ100 |
|
|
Spindle tool change method |
Pneumatic tool changer |
|
|
Shank form |
BT30 |
|
|
Feed rate |
Maximum dry run feed speed (m/min) |
36 |
|
Maximum cutting feed rate (m/min) |
20 |
|
|
Machine tool accuracy |
Positioning accuracy: X/Y/Z (mm) |
0.008 |
|
Repeated positioning accuracy: X/Y/Z (mm) |
0.005 |
|
|
Tool magazine |
Tool magazine capacity |
21T*2 |
|
Tool magazine form |
Inclined disc knife magazine |
|
|
power source |
Air pressure (Mpa) |
≥0.6 |
|
Electricity demand (Kw) |
24 |
|
|
Other parameters |
Dimensions (front and rear * |
|
|
Weight (Approx. weight: Kg) |
5200 |
|
|
Whether to configure network |
Have |
|
|
Whether to configure the tool setter |
Have |
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
