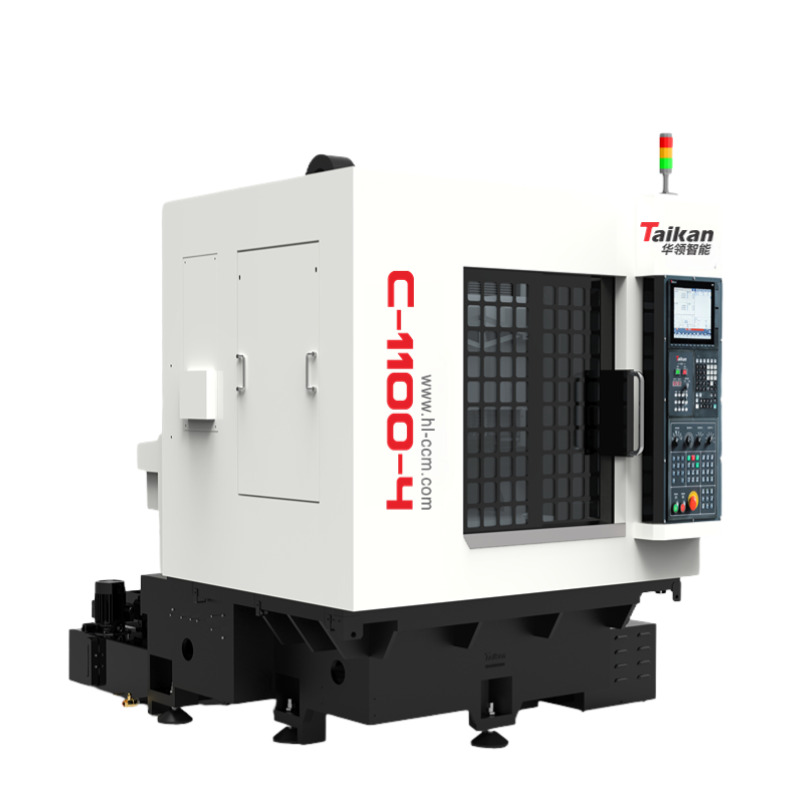

Characteristic of C-1100-2/3/4 Multi-Head High-Speed Precision Engraving Center
|
Cast Iron Bed and Beam Structure High-Speed φ100/ISO25 Precision Spindle 21-Tool Chain-Type Tool Magazine Four-Spindle Rigid Tapping Capability |
 |
Application of C-1100-2/3/4 Multi-Head High-Speed Precision Engraving Center
C-1100-2/3/4 is ideal for roughing and finishing processes of aluminum parts, housings, and radiators in the new energy vehicle industry.
Specifications of C-1100-2/3/4 Multi-Head High-Speed Precision Engraving Center
|
name |
project |
Parameters |
|
workbench |
Table size (mm) |
1100*500 |
|
Distance from table to spindle nose (mm) |
180~330/380 |
|
|
Maximum load-bearing weight (Kg) |
||
|
journey |
X-direction travel (mm) |
280 |
|
Travel in Y direction (mm) |
500 |
|
|
Z travel (mm) |
150 or 200 |
|
|
Spindle |
Spindle power (Kw) |
6.0/7.5 |
|
Spindle maximum speed (rpm) |
36000/30 000 |
|
|
Spindle diameter (mm) |
φ100/120 |
|
|
Spindle tool change method |
Pneumatic tool changer |
|
|
Shank form |
ISO 25/BT30 |
|
|
Feed rate |
Maximum dry run feed speed (m/min) |
18 |
|
Maximum cutting feed rate (m/min) |
10 |
|
|
Machine tool accuracy |
Positioning accuracy: X/Y/Z (mm) |
0.005 |
|
Repeated positioning accuracy: X/Y/Z (mm) |
0.004 |
|
|
Tool magazine |
Tool magazine capacity |
16T *4/21T*4 |
|
Tool magazine form |
Chain servo tool magazine |
|
|
power source |
Air pressure (Mpa) |
≥0.6 |
|
Electricity demand (Kw) |
32 |
|
|
Other parameters |
Dimensions (front and rear * |
|
|
Weight (Approx. weight: Kg) |
4000 |
|
|
Whether to configure network |
Have |
|
|
Whether to configure the tool setter |
Have |
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
