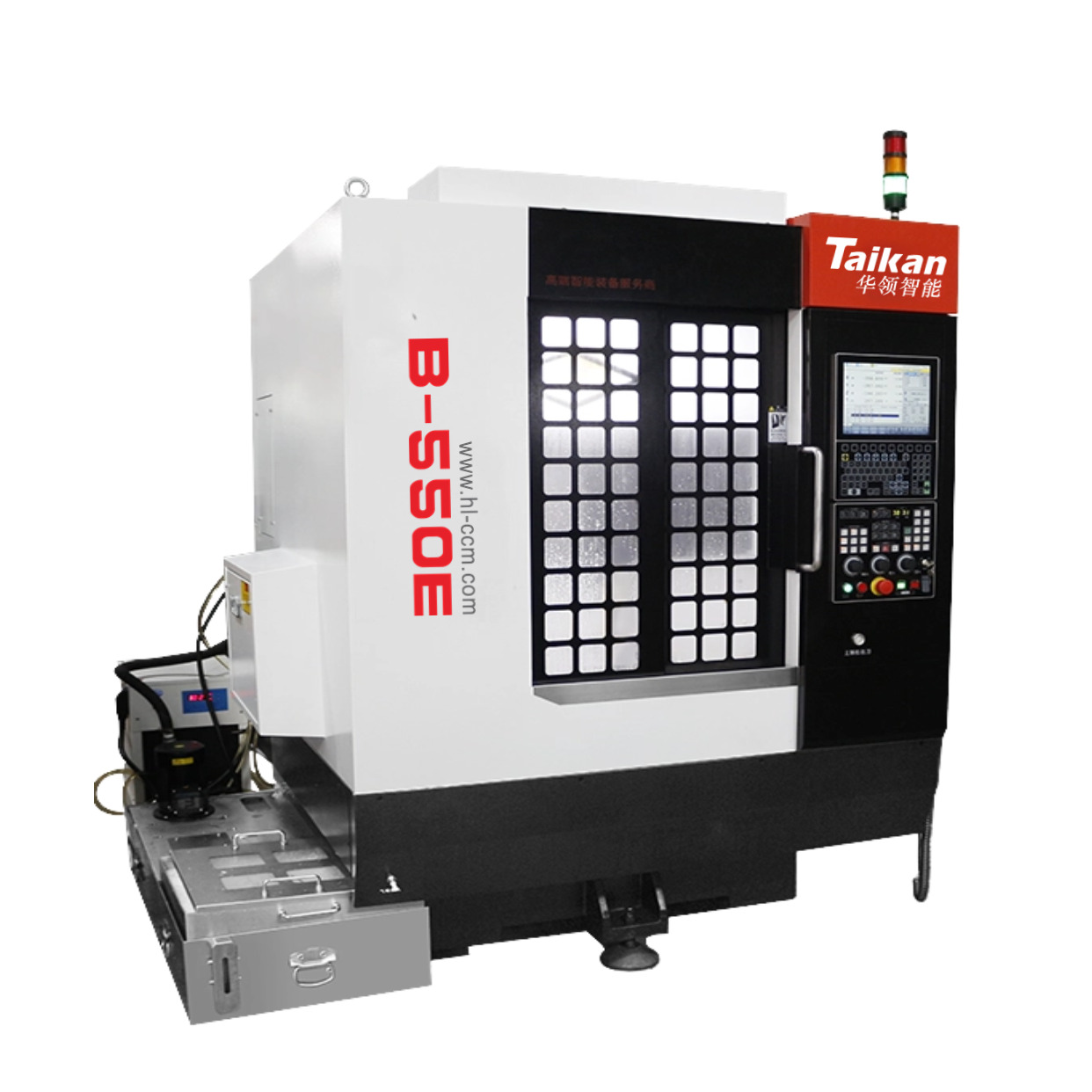

Characteristic of B-550E Single-Head High-Speed Precision Engraving Center
|
Taikan CNC System High-Speed Electric Spindle Cast Iron Structure 13-Tool Servo Tool Magazine |
 |
Application of B-550E Single-Head High-Speed Precision Engraving Center
The B-550E is designed for precision grinding of brittle and hard materials such as TFT glass, automotive glass, TV frames, large sheet components, glass, ceramics, and sapphire.
Specifications of B-550E Single-Head High-Speed Precision Engraving Center
|
name |
project |
Parameters |
|
workbench |
Table size (mm) |
550*450 |
|
Distance from table to spindle nose (mm) |
195~395 |
|
|
Maximum load-bearing weight (Kg) |
100 |
|
|
journey |
X-direction travel (mm) |
550 |
|
Travel in Y direction (mm) |
450 |
|
|
Ztravel (mm) |
200 |
|
|
Spindle |
Spindle power (Kw) |
6.0 |
|
Spindle maximum speed (rpm) |
36000 |
|
|
Spindle diameter (mm) |
φ100 |
|
|
Spindle tool change method |
Pneumatic tool changer |
|
|
Shank form |
HSK-E30 |
|
|
Feed rate |
Maximum dry run feed speed (m/min) |
15 |
|
Maximum cutting feed rate (m/min) |
10 |
|
|
Machine tool accuracy |
Positioning accuracy: X/Y/Z (mm) |
0.005 |
|
Repeated positioning accuracy: X/Y/Z (mm) |
0.004 |
|
|
Tool magazine |
Tool magazine capacity |
13T |
|
Tool magazine form |
Semi-umbrella servo tool magazine |
|
|
power source |
Air pressure (Mpa) |
≥0.6 |
|
Electricity demand (Kw) |
10.5 |
|
|
Other parameters |
Dimensions (front and rear * |
1880*1860*2200 |
|
Weight (Approx. weight: Kg) |
2700 |
|
|
Whether to configure network |
Have |
|
|
Whether to configure the tool setter |
Have |
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
